External master BUS with Ethernet communication
MI3-02M/ETH

External master
BUS

In preparation

EAN: 8595188134897 | Code: 3489

Description

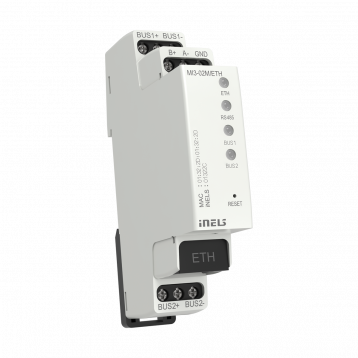

  • The external master MI3-02M/ETH enables the expansion of the number of connected iNELS3 peripheral units to the central unit CU3 by another two branches of the installation BUS (by 2x 32 peripheral units).
  • The unit can communicate with the CU3 central unit via the EBM system bus or via Ethernet.
  • Up to 8 pcs of MI3-02M/ETH can be connected to one CU3 via the EBM bus.
  • The unit MI3-02M/ETH is powered by a PS3-100/iNELS or PS3-30/iNELS power supply.
  • The status of each branch of the installation bus BUS (run, error), EBM and ETH is signaled by the corresponding color LED on the front panel of the unit.
  • If this is the fi rst or last unit on the EBM system bus, the line must be terminated with a resistor with a nominal resistance of 120 Ω.
  • MI3-02M/ETH is a 1-MODULE version, designed for mounting in a switchboard on DIN rail EN60715.

Technical parameters

  • Output: 2x BUS iNELS3
  • Supply voltage (frequency): BUS 27 V DC
  • Rated current: 75mA (at 27 V DC)
  • Dimensions: 90 x 17.6 x 64 mm
