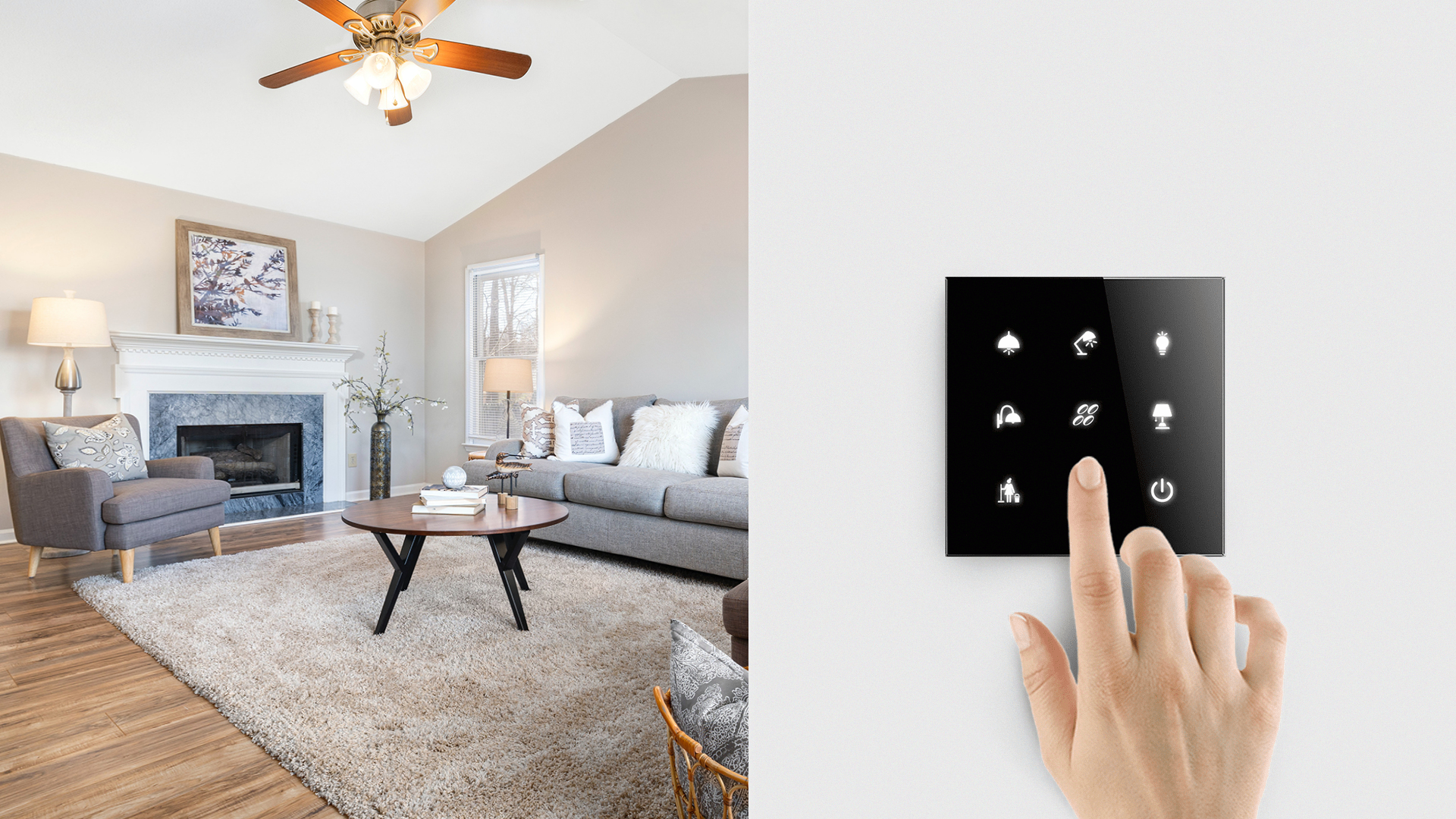

iNELS new glass touch panel: A best in class experience

Product at a glance

• Glass touch controllers with symbols GSB3-40, GSB3-60 and GSB3-90 are part of a comprehensive range of glass iNELS control units and can be advantageously used in all projects for example as a part of the guest room management system (GRMS).
• GSB3-40 is equipped with four, GSB3-60 six and GSB3-90 nine touch buttons whose functions can easily modify by the software
• Glass touch controllers with symbols GSB3-40/S, GSB3-60/S and GSB3-90/S are part of a comprehensive range of glass iNELS control units and can be advantageously used in all projects for example as a part of guest room management system (GRMS).
• GSB3-40/S is equipped with four, GSB3-60/S six and GSB3-90/S nine touch buttons whose functions can easily be modified by the software. Engraving of symbols is possible upon request.
• The glass touch controllers are equipped with an integrated temperature sensor. It is also equipped with analog-to-digital input (AIN/DIN), which can be used to connect potential-free contact or external temperature sensor TC/TZ (for example temperature measurement of the floor).
• Advantages over conventional switches/buttons are saving space, signaling the state of any system output, the ability to measure humidity and temperature as well as the ability to connect external buttons or detectors.
• Each button can control any actuator (appliance) in the system. Also, you can assign each button a different function or macro (set of functions). It is therefore possible to use one button to control several appliances at once.
• The glass touch panel is a design component of the iNELS system and is available in elegant black and white versions.
• Individual symbols can be illuminated in one of seven colors - red, green, blue, yellow, pink, turquoise and white.
• GSB3 are designed for mounting into an installation box. All versions are in the size of the module (94x94 mm) from the line of luxury switches.
• In addition to all the features in symbol models, The glass touch controllers in the SBP/SWP version are equipped with a proximity sensor, which can light up the symbols by approaching the unit to approx. 0.25 m.
