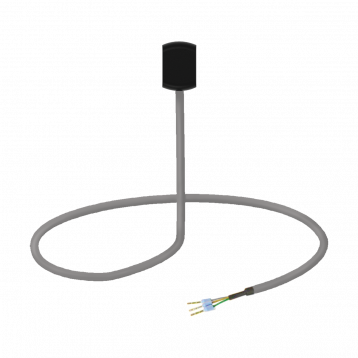

WS Magnetic sensor for water meter

A magnetic sensor that detects the pulse that is created by each rotation of the magnet placed on the unit dial meter.

EAN: 8595188157940 | Code: 5794

DESCRIPTION

  • The WS sensor is especially suitable for water meters that support magnetic sensing.
  • The sensing sensor is glued over the circular unit face of the gauge (the scanning dial is diff erent from the other indicators, e.g. the white arrow wheel).
  • The sensor is connected to the internal terminal of the RFTM-1 converter

Technical parameters

  • Working temperature: -20.. +50°C
  • Cross-section of connecting wires: max. 3,5 mm
  • Wire length: 1,5m
  • Protection: IP20
