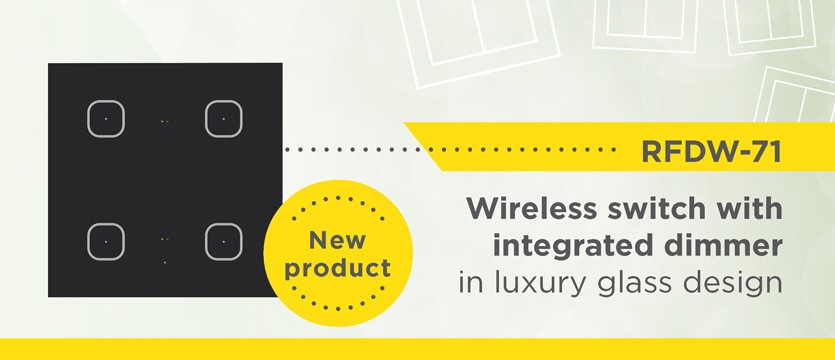

Wireless switch RFDW-71 / B in luxury glass design with integrated dimmer

By dimming, you can save up to 20% on the energy costs of lighting. In addition, you can set up any atmosphere - like sitting with friends, reading or watching TV. All with a single button thanks to programmed lighting scenarios.

The switch can be used for any R, L, C, ESL, LED light source. The possibility of setting the minimum brightness to eliminate the flicker of the light source (especially for LEDs) ranks ELKO EP dimmers among the TOP products on the market.

The glass panel

• The glass panel is a design component of the iNELS system and is available in elegant black and white version.
• Printing is possible to customize to the investor requirements.
• Individual symbols can be illuminated in one of seven colours - red, green, blue, yellow, pink, turquoise and white.

Integrated dimmer

The integrated dimmer is based on the RFDEL-71 model. Each button can control any actuator in the system. It is also possible to assign a different function or macro (function set) to each button. It is therefore possible to control several appliances at the same time with one button. The RFDW-71/B is designed for installation in an installation box.

Selected parameters

• 6 lighting functions – continuous start or return with time setting range of 2 s - 30 min.
• When it turns off the set level is stored in memory and after switching ON it returns to the last set (or programmed) status.
• Setting min. brightness by potentiometer on the front of the device eliminates flashing of various types of light sources.
• The switch directly controls the integrated dimmer and can also control other elements in the installation.

Further information and technical parameters can be found in the enclosed datasheet.
